Settings

https://github.com/sqlparser/sqlflow_public/blob/master/sqlflow_guide_cn.md#setting

Input different request parameters to the graph API to get different results:

Parameter	Acceptable values
showRelationType	If direct dataflow = true then it is fdd and we will show only direct dataflow. If direct dataflow = true and indirect dataflow=true, then it is fdd,fddi,fdr,frd. We will show both direct dataflow and indrect dataflow.
dataflowOfAggregateFunction	Whether take the parameters in the COUNT function as direct or indirect dataflow
ignoreRecordSet	true or false
ignoreFunction	true or false
showConstantTable	true or false
showTransform	true or false

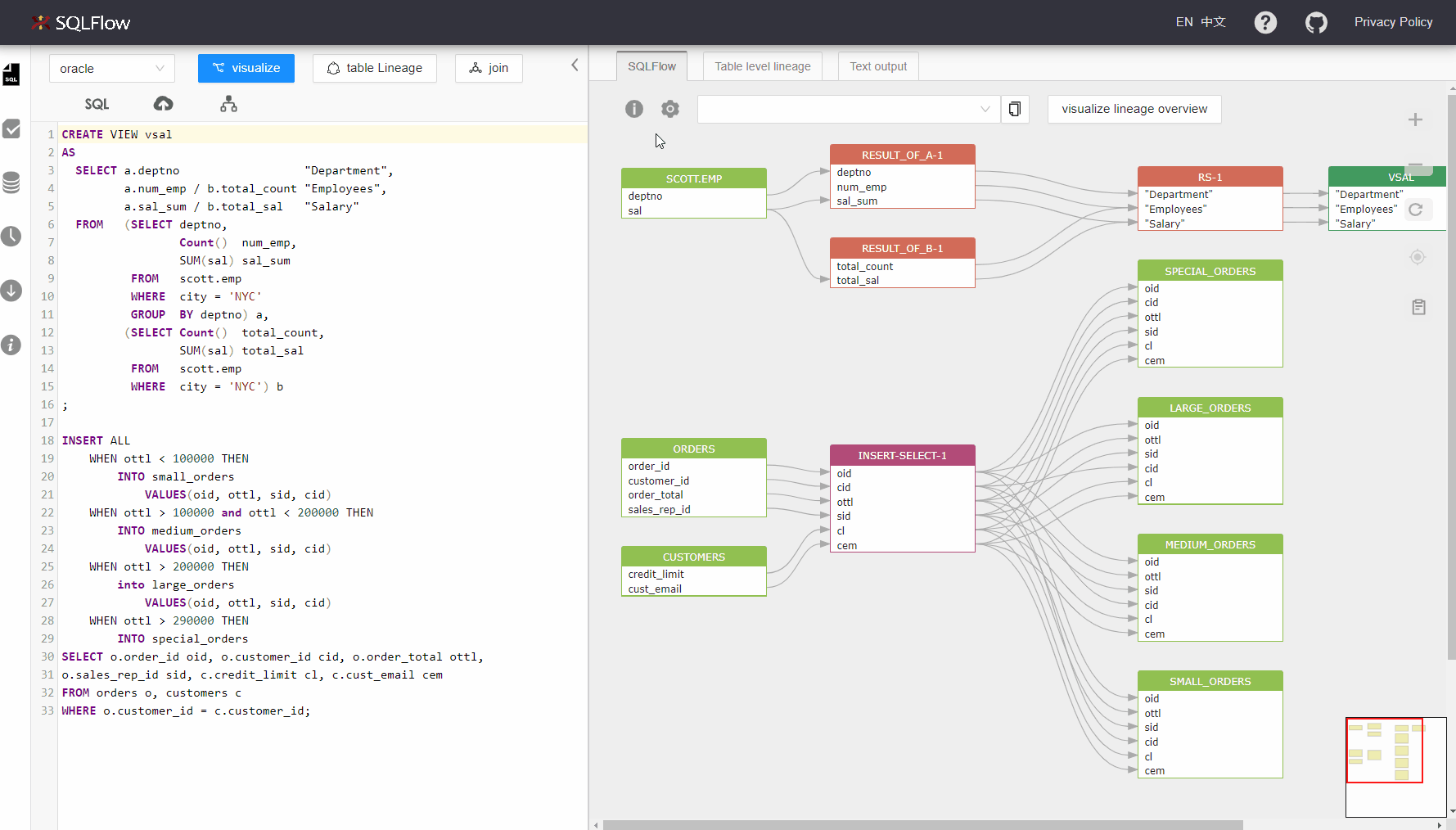

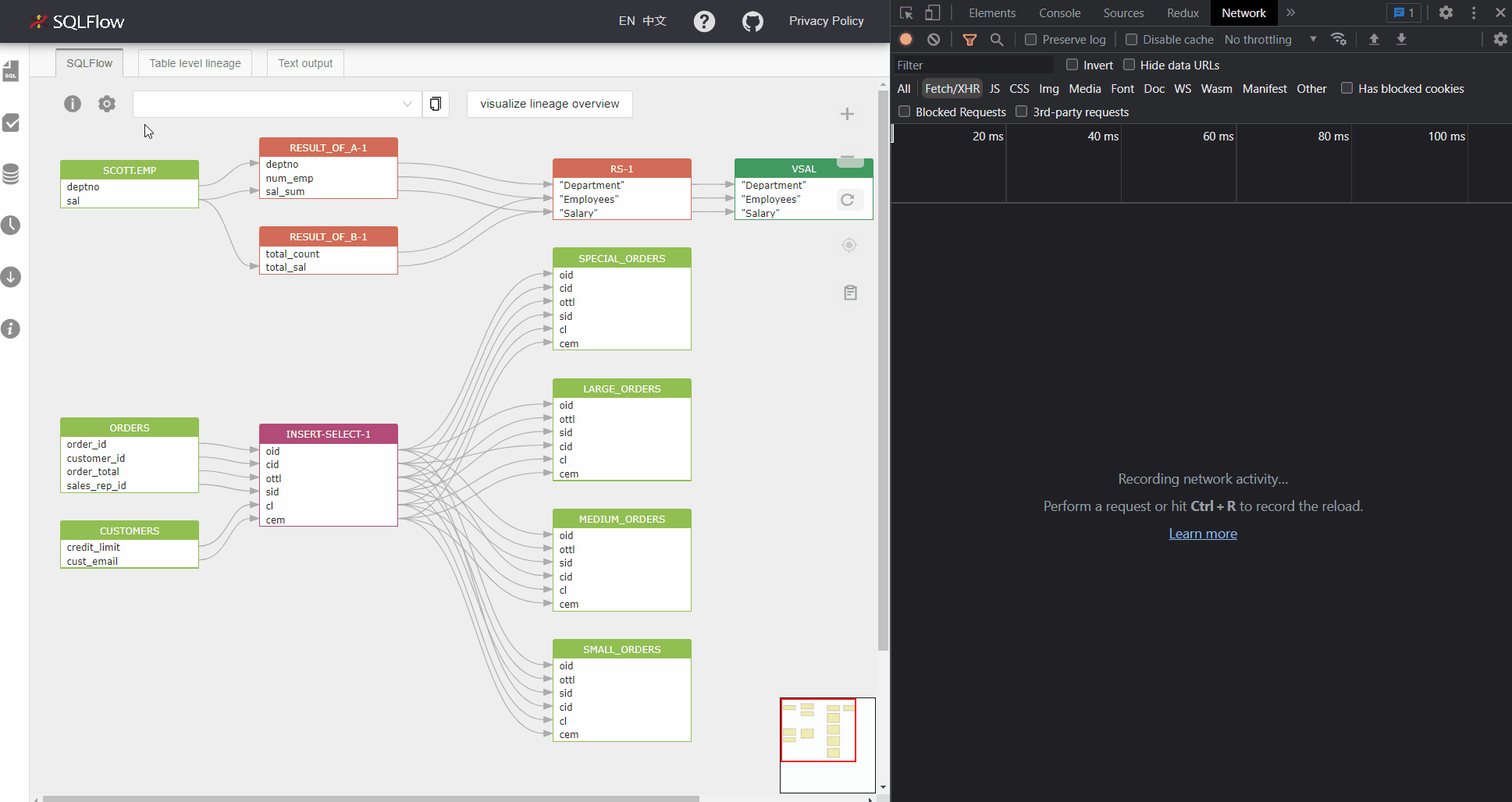

We can observe the changes on parameters when switching different modes:

Configurable parameters when creating jobs or visualizing the SQL in SQL Editor

You will be able to set the config when creating data lineage with the SQL Edior as well as giving the configurable parameters under the setting section during the job creation.

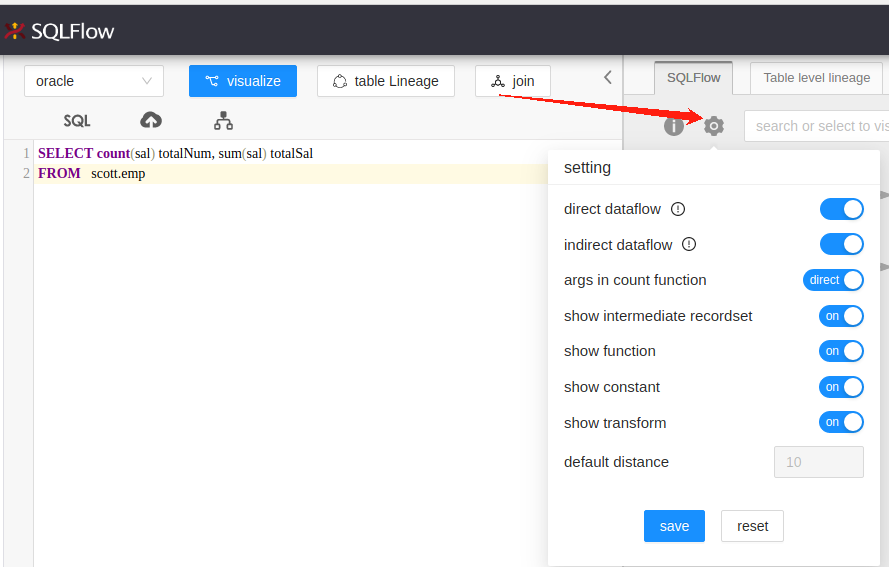

Customizing parameters when visualizing your SQL:

Giving the configurable parameters under the setting section during the job creation:

Parameter	Possible Values	Description
direct dataflow	On/Off	Whether show direct dataflow or not.
indirect dataflow	On/Off	Whether show indirect dataflow or not.
dataflow of count function	direct/indirect	Whether take the parameters in the COUNT function as direct or indirect dataflow
show intermediate recordset	On/Off	Show intermediate recordset or not.
show function	On/Off	Show function or not
show transform	On/Off	Show transform or not
show constant	On/Off	show constant or not

Take the following sql as example:

SELECT count(sal) totalNum, sum(sal) totalSal
FROM   scott.emp

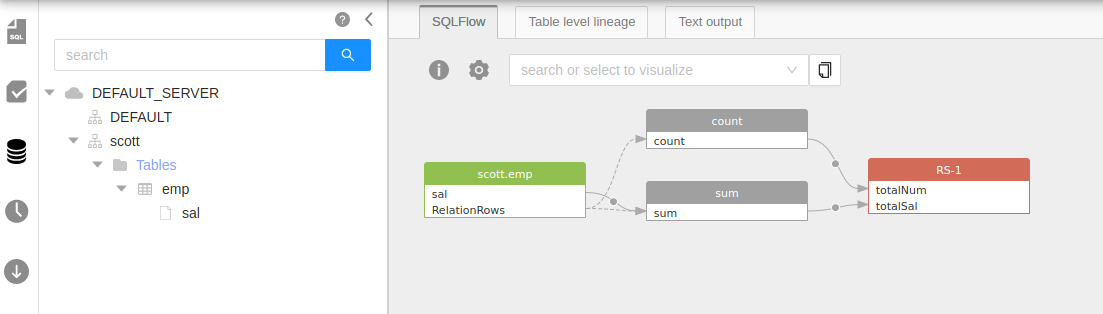

When we set all values as On and direct as the value in dataflow of count function when creating the job/visualizing the SQL, we will get following data lineage:

All direct dataflows and indirect dataflows are present in above data lineage. We show the functions in the sql and intermediate recordSets are shown.

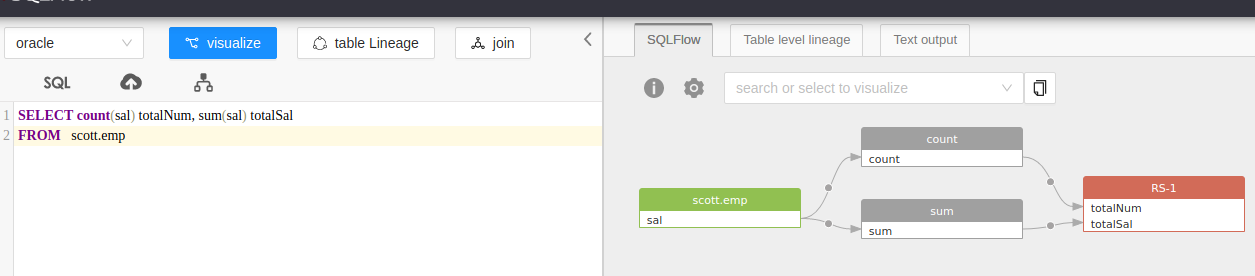

The indirect dataflows will not be present if we turn Off indirect dataflow:

You can read more theory about what is direct dataflow/indirect dataflow and why aggrect function COUNT is different.

Show function

Show transform

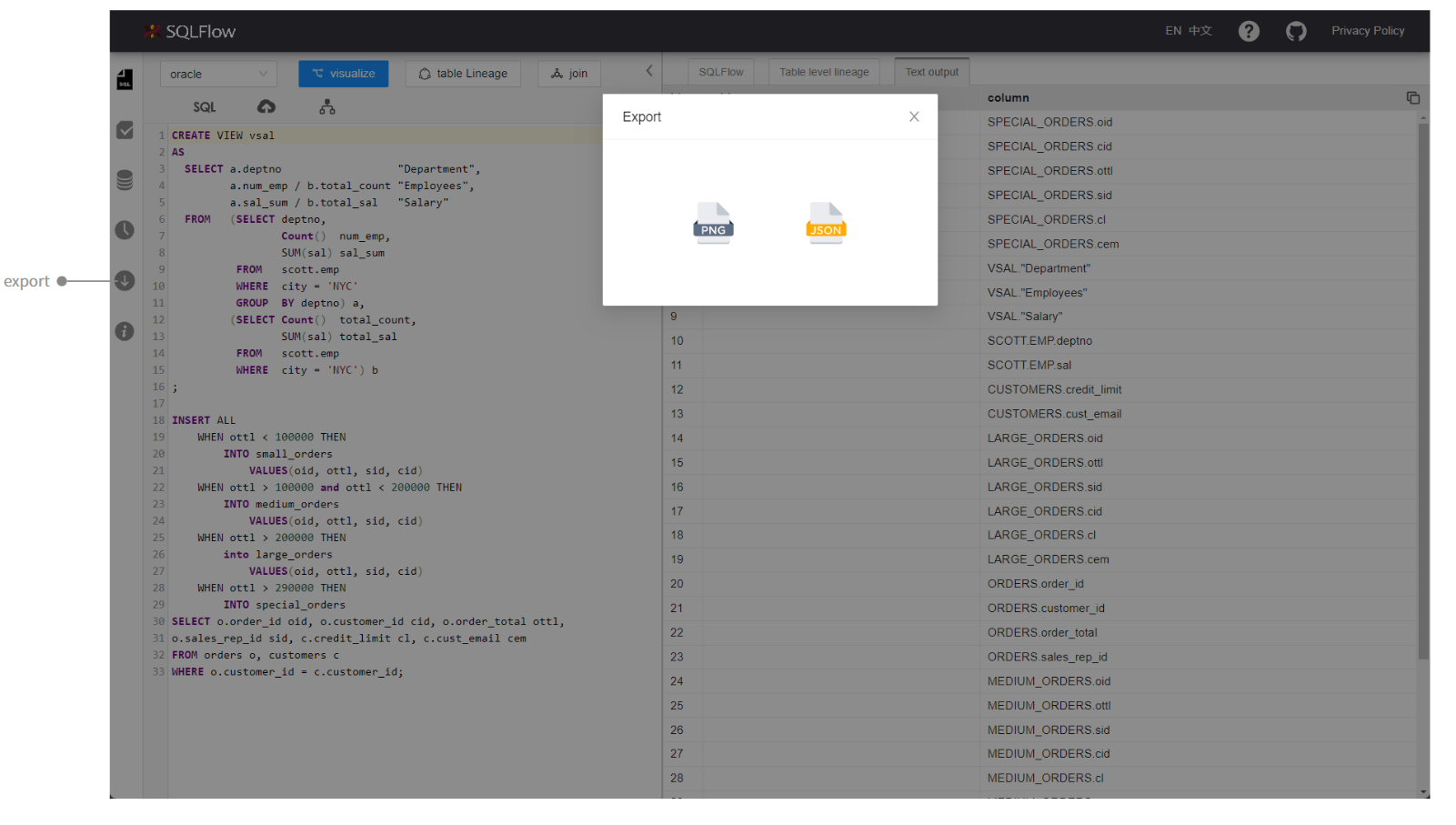

Export the graph
