Advanced Usage

This page describes how to discover the data lineage using Python and the SQLFlow REST API.

By using the SQLFlow REST API, you can code in python to discover the data lineage in SQL scripts and get the result in an actionable diagram, json, csv or graphml format.

You can integerate the python code provided here into your own project and add the powerful data lineage analsysis capability instantly.

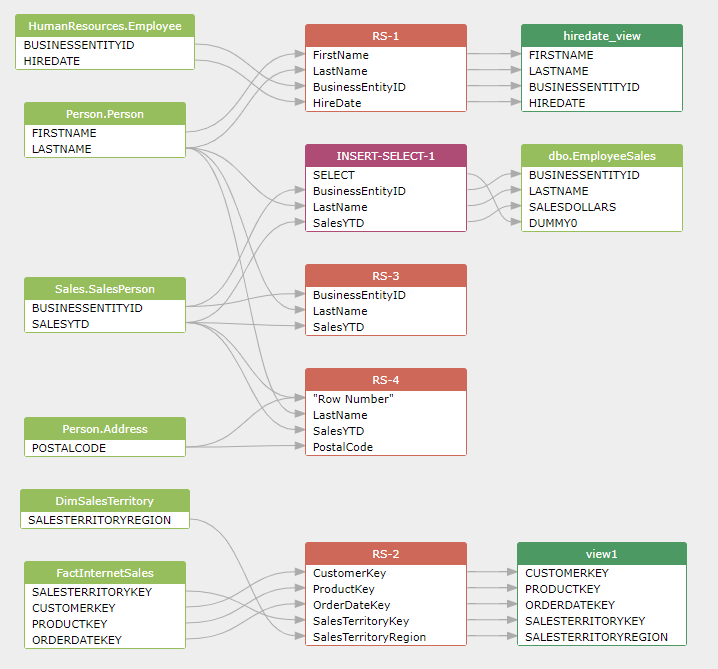

1. interactive data lineage visualizations

2. Data lineage in JSON format

3. Data lineage in CSV, graphml format

Prerequisites

• SQLFlow Cloud Server or on-premise version

• Python 2.7 or higher version must be installed and configured correctly.

• Installing Dependency Libraries:

pip install requests

Usage

python Grabit.py /s server /p port /u userId /k userSecret /t databaseType /f path_to_config_file /r resultType

eg:
    python Grabit.py /u 'auth0|xxx' /k cab9712c45189014a94a8b7aceeef7a3db504be58e18cd3686f3bbefd078ef4d /s https://api.gudusoft.com /t oracle /f demo.sql /r 1

note:
    If the parameter string contains symbols like "|" , it must be included in a single quotes (' ')

Example:

1. Connect to the SQLFlow Cloud Server

python Grabit.py /s https://api.gudusoft.com /u 'YOUR_USER_ID' /k YOUR_SECRET_KEY /t sqlserver /f python-data-lineage-sqlserver.sql /r 1

2. Connect to the SQLFlow on-premise This will discover data lineage by analyzing the python-data-lineage-sqlserver.sql file. You may also specify a zip file which includes lots of SQL files.

python Grabit.py /s http://127.0.0.1 /p 8081 /u 'gudu|0123456789' /t sqlserver /f python-data-lineage-sqlserver.sql /r 1

This will discover data lineage by analyzing all SQL files under sqlfiles directory.

python Grabit.py /s http://127.0.0.1 /p 8081 /u 'gudu|0123456789' /t mysql /f sqlfiles /r 1

Parameters

• path_to_config_file

This can be a single SQL file, a zip file including multiple SQL files, or a directory including lots of SQL files.

• server

Usually, it is the IP address of the SQLFlow on-premise version installed on your owner servers such as 127.0.0.1 or http://127.0.0.1

You may set the value to https://api.gudusoft.com if you like to send your SQL script to the SQLFlow Cloud Server to get the data lineage result.

• port

The default value is 8081 if you connect to your SQLFlow on-premise server.

However, if you setup the nginx reverse proxy in the nginx configuration file like this:

    location /api/ {
        proxy_pass http://127.0.0.1:8081/;
        proxy_connect_timeout 600s ;
        proxy_read_timeout 600s;
        proxy_send_timeout 600s;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header User-Agent $http_user_agent;
    }

Then, keep the value of serverPort empty and set server to the value like this: http://127.0.0.1/api.

Please keep this value empty if you connect to the SQLFlow Cloud Server by specifying the https://api.gudusoft.com in the server >

• userId, userSecret

This is the user id that is used to connect to the SQLFlow server. Always set this value to gudu|0123456789 and keep userSecret empty if you use the SQLFlow on-premise version.

If you want to connect to the SQLFlow Cloud Server, you may request a 30 days premium account to get the necessary userId and secret code.

• databaseType

This parameter specifies the database dialect of the SQL scripts that the SQLFlow has analyzed.

	access,bigquery,couchbase,dax,db2,greenplum,hana,hive,impala,informix,mdx,mssql,
	sqlserver,mysql,netezza,odbc,openedge,oracle,postgresql,postgres,redshift,snowflake,
	sybase,teradata,soql,vertica

• resultType

When you submit SQL script to the SQLFlow server, A job is created on the SQLFlow server and you can always see the graphic data lineage result via the browser,

Even better, This demo will fetch the data lineage back to the directory where the demo is running. Those data lineage results are stored in the data/result/ directory.

This parameter specifies which kind of format is used to save the data lineage result.

Available values for this parameter:

• 1: JSON, data lineage result in JSON.

• 2: CSV, data lineage result in CSV format.

• 3: diagram, in graphml format that can be viewed by yEd.

SQLFlow REST API

Please check here for the detailed information about the SQLFlow REST API
