Handling Internal Database

PreviousFAQNextDelete Your Account

Last updated 2 years ago

If your database is deployed in an internal network and is not accessible for external connection, you may not be able to read your internal database directly from the public SQLFlow server.

You can use to connect your database(Read for how to install) or you can try with the belowing approach:

Use to export the database metadata file.

sudo bash exporter.sh
-host 127.0.0.1
-port 1521
-db orcl
-user your_username
-pwd your_password
-save /tmp/sqlflow-ingester
-dbVendor dbvoracle

You may want to check for more possible inputs.

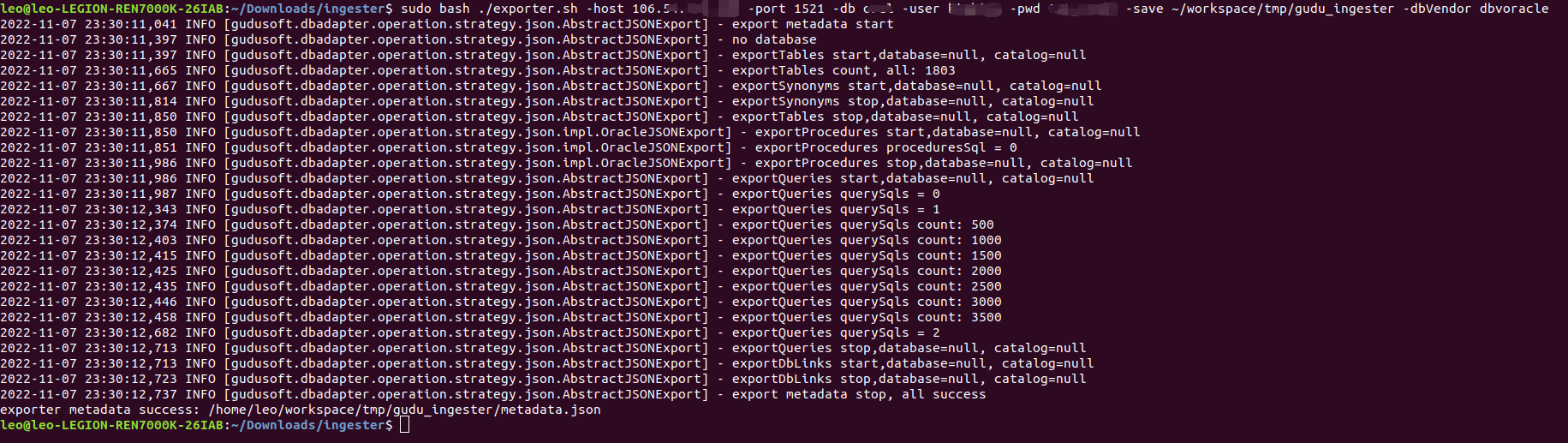

You will receive the message if the export is succeeded:

exporter metadata success: /home/leo/workspace/tmp/gudu_ingester/metadata.json

Check your output folder and you shall find your metadata.json:

With the exported metadata.json, we are now ready to retrieve data lineage.

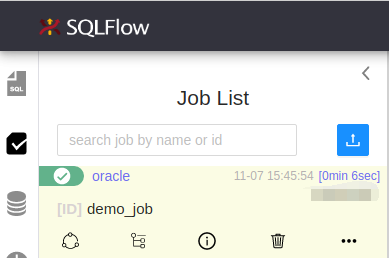

Check the lineage overview/detail once the job is finished.

Use SQLFlow On-Premise Version

Create sqlflow job by .

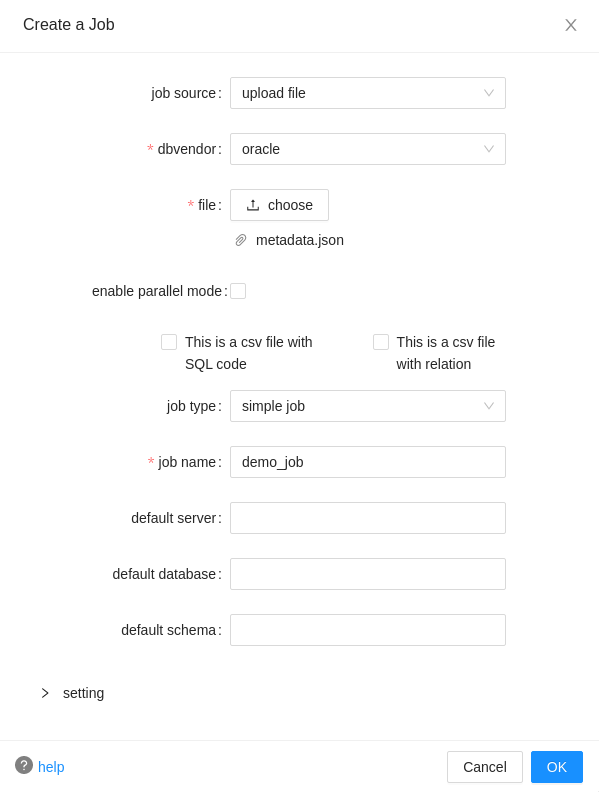

Open your browser and go to our , then create a Job with the Job Source as upload file:

Read more details on how to create the job and what do these parameters stand for .

You may want read more about the .
