SQLFlow generates data lineage by analyzing SQL queries and stored procedures.

The entity in the data lineage model includes table, column, function, relation and other entities . The combination of the entity and dataflow shows the lineage from one table/column to another.

1. A dataflow unit

A dataflow unit includes a source entity, a target entity and a dataflow type between them.

SELECT p.FirstName
from Person.Person AS p

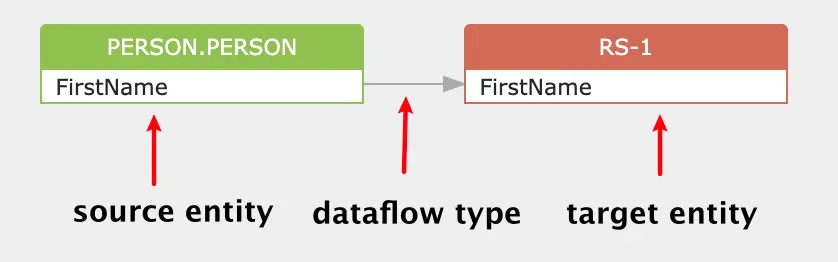

This is the dataflow generated for the above SQL query.

person.persion.FirstName -> direct -> RS-1.FirstName

1.1 Source, target entity

Source and target entity usually referes to table, view and other relations such as common table expression, result set generated during the execution of the query. It may also refers to a file in the HDFS system and etc.

1.2 Dataflow type

There are two types of dataflow: direct and indirect.

1.2.1 Direct dataflow

The direct dataflow means the data of the target entity comes directly from the source entity.

In the above diagram, the data of RS-1.FirstName comes from the Person.FirstName directly.

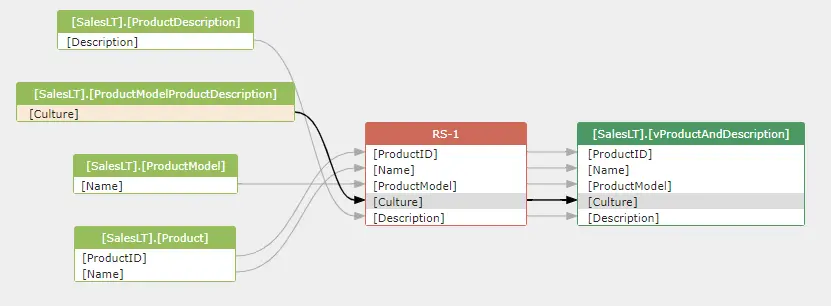

An arrow is used to represent a direct dataflow in the diagram:

1.2.2 Indirect dataflow

The indirect dataflow means the data of the target column does not come from the source column, but the data of the source column/table impact the result data of the target column.

A dotted line arrow is used to represent an indirect dataflow in the diagram:

The source column in the indirect dataflow usually appears in the following clause:

• Where clause

• Group by clause

• Winddows function

• Join condition

SELECT deptno, COUNT() num_emp, SUM(SAL) sal_sum
FROM scott.emp
GROUP BY deptno

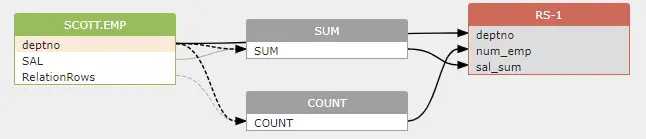

The value of COUNT() and SUM(SAL) is impacted by the value of column deptno in the group by clause. So the indirect dataflows will be created like this:

scott.emp.deptno -> indirect -> COUNT()
scott.emp.deptno -> indirect -> SUM(SAL)

For other indirect dataflows, we will discuss later.

1.2.3 Join

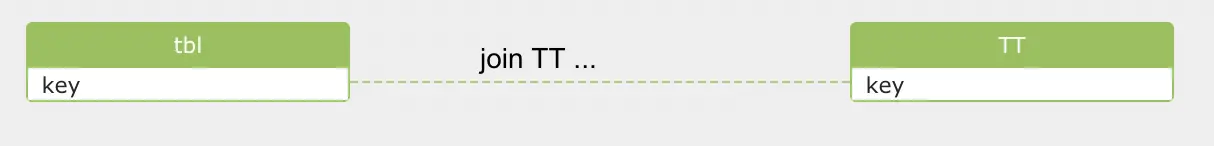

The join relationship build a link between 2 or more columns in the join condition. Striclty speaking, the relation is not a dataflow type.

 select b.teur
 from tbl a left join TT b on (a.key=b.key)

A join relationship will be created after analzying the above SQL. It indicates a join relationship betwee tbl.key and TT.key.

2. The entity in dataflow

When build dataflow between 2 entities: the source and target entity. They can be column to column, or, table to colum, or table to table.

2.1 column to column

This is the most usual case. Both entites in a dataflow are columns.

2.2 table to column

It is meant to say the total number of rows of a table impacts the value of a column when we say a table is impacting the value of a column. In most of cases, the column is derived from a COUNT() function.

SELECT COUNT() num_emp
FROM scott.emp

A table to column dataflow is represented by using a RelationRows pseduo column. An indirect dataflow is built from scott.emp.RelationRows to RS-1.num_emp

scott.emp.RelationRows -> indirect -> COUNT() -> RS-1.num_emp

2.3 table to table

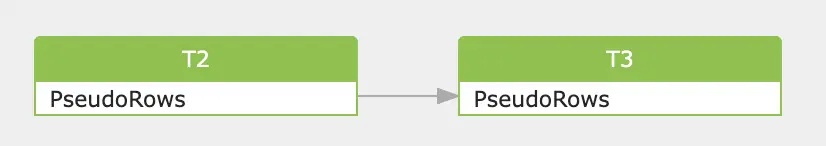

Sometimes, there will be a dataflow between 2 tables. For example, in an alter table rename SQL statement, a table to table dataflow will be created. Acutally, a table to table dataflow is represented by a column to column dataflow using the RelationRows pseudo column.

alter table t2 rename to t3;

3. Data lineage

A data lineage consists of lots of basic dataflow units.

CREATE VIEW vsal
AS
  SELECT a.deptno                  "Department",
         a.num_emp / b.total_count "Employees",
         a.sal_sum / b.total_sal   "Salary"
  FROM   (SELECT deptno,
                 Count()  num_emp,
                 SUM(sal) sal_sum
          FROM   scott.emp
          WHERE  city = 'NYC'
          GROUP  BY deptno) a,
         (SELECT Count()  total_count,
                 SUM(sal) total_sal
          FROM   scott.emp
          WHERE  city = 'NYC') b

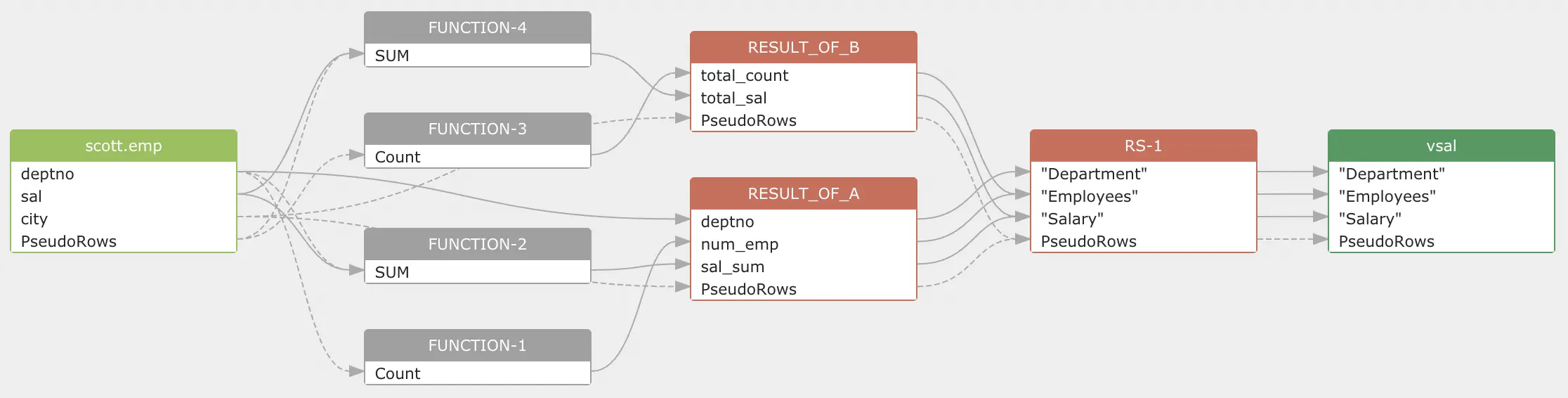

The data lineage diagram:

The output also available in XML or JSON format .

4. References

1. xml code used in this article is generated by DataFlowAnalyzer tools

2. digram used in this article is generated by the Gudu SQLFlow Cloud version
